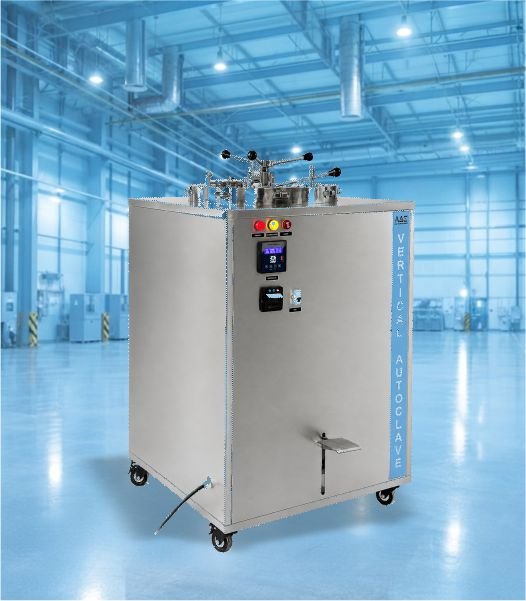

Auto Clave

TEMPERATURE RANGE 121°C & 134°C

Capacity: 35 to 175 Ltrs
Pressure Range : 15 to 20 psi
MOC SS 304 & 316 Grade
Automatic Sterilization and control monitoring
Automatic purging system through solenoid valve with automatic steam release after sterilization.
Low water Indication in display for element safety
Digital temperature controller based system
Chamber Type : Double Wall / Triple Wall
Heavy guage wing nuts for perfect locking as standard & Radial locking mechanism as optional

Models	Cap. in Litres	Size in mm	Connected Load
AAE/AC - 32	32	300D x 450H	2 KW
AAE/AC - 50	50	300D x 500H	3 KW
AAE/AC - 75	75	400D x 600H	4 KW
AAE/AC - 100	100	450D x 650H	4 KW
AAE/AC - 125	125	450D x 750H	6 KW
AAE/AC - 150	150	500D x 750H	6 KW
AAE/AC - 175	175	550D x 750H	6 KW
